Product Introduction

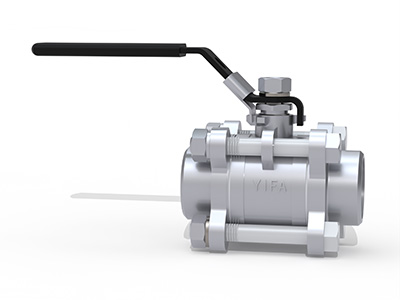

The three-piece stainless steel ball valve is a high-performance valve designed for reliable shut-off and control of various industrial fluids. Its split-body design allows for easy maintenance and cleaning without removing the entire valve from the pipeline, making it ideal for applications requiring frequent servicing.
Constructed from high-quality stainless steel, this valve offers excellent corrosion resistance, durability, and pressure tolerance. The full-port design ensures minimal flow resistance and high flow capacity. The precision-engineered ball provides tight sealing performance and smooth operation even under high pressure and temperature conditions.
Available with various end connections such as threaded, socket weld, or butt weld, this valve is suitable for use in industries such as chemical processing, oil & gas, food and beverage, pharmaceutical, and water treatment.
Specifications
| Inch | DN | d | L | H | W | D | J |
| 1/4″ | 6 | 10 | 67 | 52 | 95 | 14.2 | 9.5 |
| 3/8″ | 10 | 12 | 67 | 52 | 95 | 17.6 | 9.5 |
| 1/2″ | 15 | 15 | 72 | 55 | 105 | 21.8 | 9.5 |
| 3/4″ | 20 | 20 | 80.5 | 59 | 128 | 27.2 | 12.5 |
| 1″ | 25 | 25 | 92 | 66 | 145 | 33.9 | 12.5 |
| 1-1/4″ | 32 | 32 | 110 | 71 | 145 | 42.7 | 12.5 |
| 1-1/2″ | 40 | 38 | 118 | 82 | 160 | 48.8 | 12.5 |
| 2″ | 50 | 50 | 141 | 90 | 190 | 61.2 | 16 |
| 2-1/2″ | 65 | 65 | 169 | 122 | 220 | 73.9 | 16 |
| 3″ | 80 | 80 | 198 | 135 | 250 | 89.8 | 16 |
| 4″ | 100 | 100 | 245 | 156 | 300 | 115.2 | 19 |
