Product Introduction

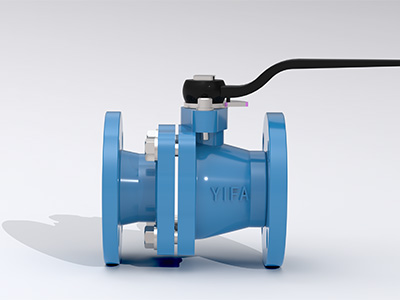

Ball valve is a valve whose opening and closing member (ball) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for regulating and controlling fluids. Ball valves are mainly used to cut off, distribute and change the flow direction of the medium in pipelines. They can be closed tightly by simply rotating 90 degrees and applying a very small torque. Ball valves are most suitable for use as switches and cut-off valves.
Specifications
| DN | DN50-DN200 |
| Temperature range | -20℃-150℃ |
| Installation direction | Bidirectional |
| Face to face | ASME B16.10 |
| Top connection | / |
| Body material | Ductile Iron |
| Stem material | Stainless Steel |
| PN | PN16 |
| Connection | Flange |
| Design | API608 |
| Flange drilling | PN16 |
| Inspection | API598 |
| Ball material | SS304/SS316 |
| Sealing material | PTFE |
