Product Introduction

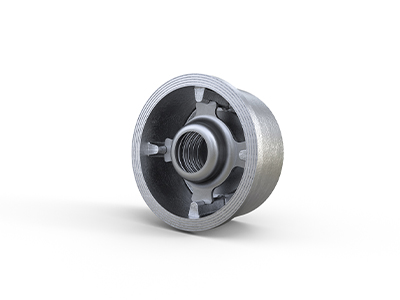

The disc check valve is a wafer-type one-way valve made of carbon steel or stainless steel. Its spring-loaded design allows fluid to flow in only one direction and prevents reverse flow.
This valve can withstand a maximum operating pressure of 40 bar and is suitable for operating temperatures from -20 to 350°C.These valves are widely used in process lines, hot and cold water systems, heating systems, steam and condensate lines, and oil lines.
Specifications
| DN | DN15-DN250 |
| Temperature range | -20℃-350℃ |
| Installation direction | unidirectional |
| Face to face | Manufacturer standard |
| Body material | WCB/SS304/SS316/SS304L/SS316L |
| Stem material | SS420, SS304, SS316 |
| PN | PN10, PN16, 150LB |
| Connection | Wafer |
| Design | Manufacturer standard |
| Testing | API598 |
| Disc material | WCB/SS30/SS316/SS304L/SS316L |
| Sealing material | EPDM, NBR, PTFE, VITON, SILICONE,Cr13,SS304,SS316, |
