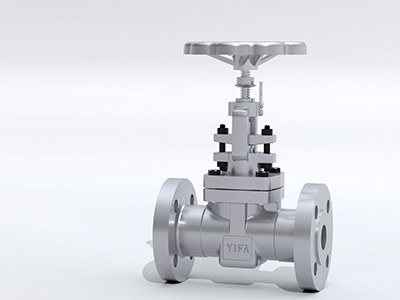

Forged Steel Flange Globe Valve

Series J41H/Y

  • Size: DN15-DN50
  • Pressure: 150LB,300LB,600LB,800LB,900LB,1500LB
  • Body material: A105,F11,F22,F304,F316,F321
  • Applicable medium: Water, steam, oil etc.

Product Introduction

Forged steel globe valves are valves that control the opening and closing of fluid media by the movement of the valve disc along the centerline of the valve seat. They are suitable for high-pressure and high-temperature conditions. They feature a compact structure, reliable sealing, wear resistance, and short opening and closing time, and are widely used in industries such as petroleum, chemical, and power. These valves offer various connection methods and flexible material selection, and can handle a variety of media including water, steam, and oil.

Specifications

DNDN15-DN50
Temperature range≤425℃
Installation directionBidirectional
Face to faceASME B16.10,GB/T12221
Top connection/
Body materialA105,F11,F22,F304,F316,F321
Stem material2Cr13,SS304,SS316
CLASS150LB,300LB,600LB,800LB,900LB,1500LB
ConnectionFlange
DesignAPI602,GB/T12235
Flange drillingASME B16.5,GB/T79
InspectionAPI598,GB/T13927
Disc materialCr13
Sealing materialCr13,STL

Downloads

Catalogue universal

Yifa drawing forged steel flanged globe valve
