Product Introduction
Knife gate valve is a on-off valve with simple and space-saving structure, which can be used for the switch control of media containing solid particles or impurities in pipelines.

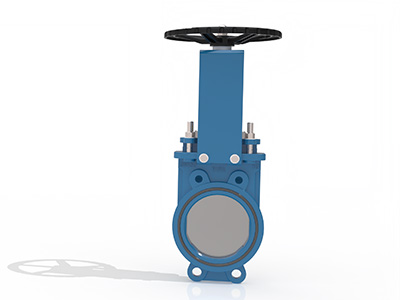

Non-rising stem knife gate valve refers to a valve where the stem is hidden inside the body and does not move up and down with the gate during the opening and closing.
Knife gate valve can be used to control the flow of various media such as slurry, sewage, coal slurry, ore pulp, and high-viscosity liquids. It mainly plays the role of cutting off in the pipeline. It is widely used in many fields such as water treatment, mining, paper making, and chemical industry, etc.
Specifications
| DN | DN50-DN300 |
| Temperature range | -20℃-120℃ |
| Installation direction | Bidirectional |
| Face to face | GB/T12221, ASME B16.10, JIS B2002, DIN 3202, BS 2080 |
| Top connection | ISO5211 |
| Body material | GGG40, WCB,SS304, SS316 |
| Stem material | SS420, SS431, SS304, SS316 |
| PN | PN10, PN16, JIS5K, JIS10K, 150LB |
| Connection | Wafer |
| Design | GB/T12238, API609, JIS B2064, DIN 3354, BS 5155 |
| Flange drilling | Class150/PN10/16/10K |
| Inspection | API598 |
| Disc material | GGG40, CF8, CF8M, C954 |
| Sealing material | EPDM, NBR, PTFE, VITON, 13Cr, SS304, SS316 |
